Raymarine AXIOM+ 7, Multi-function 7" Display with Western European LightHouse Chart
Product Code: NAE70634-00-WEU
Price Includes VAT. 3 - 5 Working Days Delivery
Raymarine AXIOM+ Chartplotters – All-in-One Navigation, Reimagined
The Axiom®+ Series is the new generation of Raymarine chartplotters, designed for maximum performance, clarity, and expandability. Built with upgraded hardware and advanced software, Axiom+ gives boaters the tools they need to navigate confidently, even in the toughest conditions.
Performance Tuned
- Quad-Core Power – Equipped with a powerful quad-core processor for ultra-fast chart redraws and smooth performance.
- Expanded Storage – More onboard capacity for personal data, apps, and system upgrades.
- LightHouse OS – Intuitive, smart, and user-friendly operating system for seamless navigation.
Maximum Visibility
- Next-Gen IPS Display – High-resolution screens deliver charts, sonar, radar, and video in rich, vibrant color.
- 25% Brighter – Up to 1,800 nits for exceptional clarity in all light conditions.

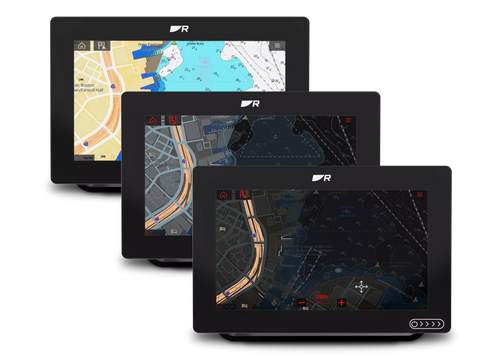

- Adaptive Viewing Modes – New Day, Dusk, and Night color themes for optimal visibility.

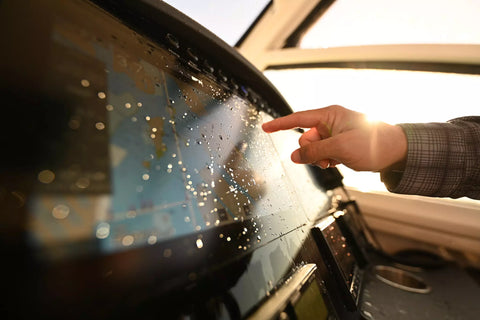

HydroTough™ Display Technology
- All-Weather Protection – Nano-coated, impact-resistant glass engineered to repel water, oil, and smudges.
- Touch Accuracy – Responsive, reliable touch control—even with wet hands.
- Enhanced Contrast & Colour – True-to-life visuals in any condition.
Ready to Expand
- Flexible Networking – Connect multiple displays, radars, marine cameras, engines, and sensors.
- Radar Integration – Compatible with Quantum and Cyclone radars for enhanced obstacle detection and Doppler target tracking.

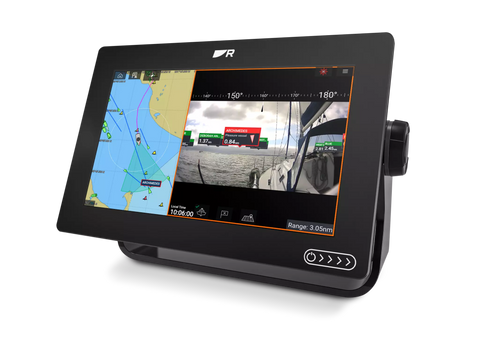

- Thermal Vision & AR – Add FLIR thermal cameras and ClearCruise™ Augmented Reality for advanced situational awareness.
- AIS Overlay – Safely navigate busy waterways with AIS target visualization directly on your charts.
Smarter Navigation Decisions
From high-speed chart redraws to next-level augmented reality, the Axiom+ range is designed to help you see more, know more, and navigate smarter. Whether cruising inland waterways or offshore routes, Axiom+ delivers unmatched confidence at the helm.
Technical Details:
| Physical | |
|---|---|
| Dimensions (Trunnion mounted) |
Axiom+ 7: Width: 250.4 mm (9.86 in), Height: 162.5 mm (6.4 in), Depth including cables: 218 mm (8.58 in) |
| Dimensions (Surface/Flush mounted) |
Axiom+ 7: Width: 201.1 mm (7.92 in), Height: 133 mm (5.24 in), Depth including cables: 218 mm (8.58 in) |
| Accessory connection |
USB Micro B |
| Ethernet connection |
RayNet (10/100 Mbits/s) |
| External storage |
MicroSDXC card slot x 1 |
| NMEA 2000 connection |
DeviceNet (male connector built into power cable) |
| Wireless connections |
Bluetooth: V4.0, Wi-Fi: 802.11/b/g/n |
| Internal storage |
16 GB Solid State (14 GB usable) |
| Transducer connection |
25 pin RealVision type connector. Requires the A80490 adaptor cable for CPT-S style transducers |
| LCD | |
|---|---|
| Size (diagonal) |
Axiom+ 7: 7" |
| Resolution |
Axiom+ 7: WSVGA 1024 x 600 |
| Viewing angle |
Axiom+ 7: Top 85° / Bottom 85° / Left 85° / Right 85° |
| Illumination |
Axiom+ 7: 1800 nits / 1800 cd/m2 |
| Protective coating |
HydroToughTM Oleophobic |
| Type |
IPS (In-Plane Switching) |
| Color depth |
24-bit |
| Number of simultaneous touches |
2 |
| Power | |
|---|---|
| Power consumption |
Axiom+ 7: 7.34 W |
| Operating voltage range |
8 V dc to 16 V dc |
| Fuse rating |
7 A |
| Nominal supply voltage |
12 V dc |
| LEN (NMEA 2000 Load Equivalency Number) |
1 |
| Environmental | |
|---|---|
| Operating temperature |
-25°C to +55°C (-13°F to 131°F) |
| Storage temperature |
-30°C to +70°C (-22°F to 158°F) |
| Relative humidity |
Up to 93% @ 40°C (104°F) |
| Waterproof rating |
IPx6, IPx7 |
| GPS | |
|---|---|
| Position Accuracy |
Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time |
| Geodetic Datum |
WGS-84 (alternatives can be selected on the MFD) |
| Satellite Differential Type (SBAS) |
WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan) |
| Channels |
Track up to 28 satellites simultaneously |
| Antenna |
Internal - Ceramic chip mounted near top of unit |
| GNSS compatibility |
GPS, GLONASS, Beidou |
| Almanac Update |
Automatic |
| Signal Acquisition |
Automatic |
| Receiver IC Sensitivity |
165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start) |
| Operating frequency |
1574 MHz to 1605 MHz |
| Refresh rate |
10 Hz (10 times per second) |
| Time to first fix from cold start |
< 2 minutes |
What's in the box?
| 1 |
MFD (Chartplotter) |
| 2 |
Trunnion bracket |
| 3 |
Trunnion knobs x 2 |
| 4 |
Suncover |
| 5 |
Documentation |
| 6 |
Panel mount gasket |
| 7 |
Rear mounting brackets for 9" display |
| 8 |
Rear mounting brackets for 12" display |
| 9 |
Threaded studs (M5x58) x 4 |
| 10 |
Thumb nuts (M5) x 4 |
| 11 |
Power/NMEA 2000 cable (1.5 m (4.92 ft) power lead, 0.5 m (1.64 ft) NMEA 2000 lead) |
| 12 |
DeviceNet to SeaTalkng adaptor cable 120 mm (4.7 in) |
