Volvo Penta Transom Bar Anode Aluminium
Product Code: ABC00735AL
Detailed Specifications
|
Feature |
Specification |
|---|---|
|
Product Name |
Volvo Penta Transom Bar Anode |
|
Anode Type |
Transom Bar Anode |
|
Compatibility |
Volvo Penta Marine Drive Systems |
|
Weight |
0.200 kg / 0.44 lbs |
|

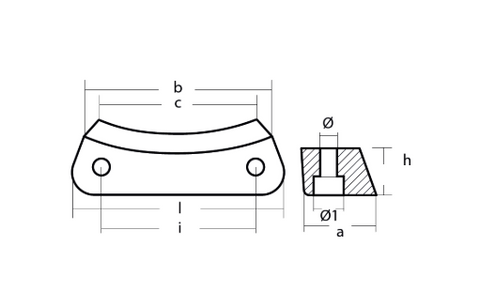

Height (h) |
25.00 mm / 0.98 inches |
|
Overall Length (l) |
118.00 mm / 4.65 inches |
|
Width (a) |
37.00 mm / 1.46 inches |
|
Dimension (b) |
101.00 mm / 3.98 inches |
|
Dimension (c) |
85.00 mm / 3.35 inches |
|
Mounting Hole Spacing (i) |
86.00 mm / 3.39 inches |
|
Hole Diameter (Ø) |
9.50 mm / 0.37 inches |
|
Secondary Diameter (Ø1) |
15.00 mm / 0.59 inches |
|
Application |
Marine Transom Corrosion Protection |
|
Function |
Sacrificial Anode |
|
Suitable For |
Compatible Volvo Penta Transom Assemblies |
Product Description

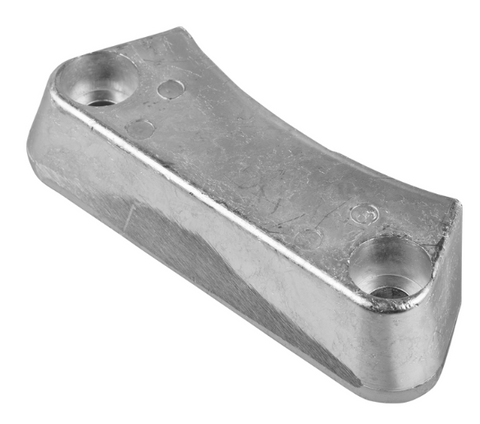

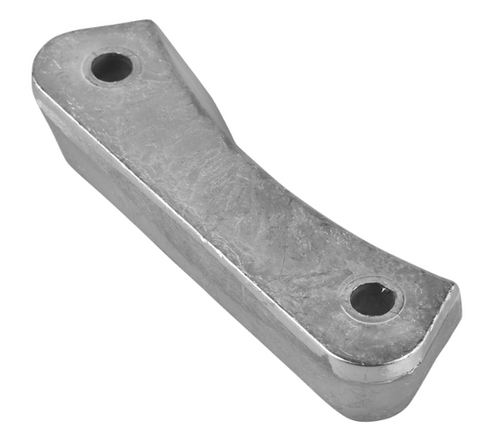

The Volvo Penta Transom Bar Anode is designed to provide effective protection against galvanic corrosion for compatible Volvo Penta marine drive systems and associated underwater metal components.
This sacrificial anode helps protect essential transom and drive components by corroding in place of the metal surfaces it is designed to safeguard, reducing the risk of corrosion-related damage and extending the service life of marine equipment.
Featuring a compact bar-style design, the anode is suitable for installation on compatible Volvo Penta transom assemblies. Its practical mounting configuration allows for straightforward replacement during routine servicing and maintenance.
Ideal for regular boat maintenance and anode replacement, the Volvo Penta Transom Bar Anode provides a reliable solution for maintaining corrosion protection and helping preserve the condition and performance of underwater marine components.
Note: All dimensions are provided in millimetres and inches. Please verify the anode material, mounting dimensions and compatibility with your specific Volvo Penta drive or transom assembly before installation.
