Marine Plumbing & Fittings

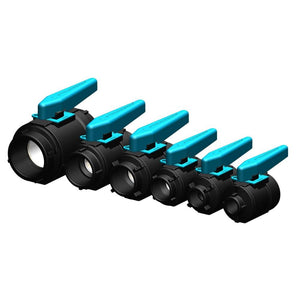

Every water system aboard runs through this collection: TruDesign composite skin fittings, ball valves and hose connectors, brass and bronze thru-hulls, JCS Hi-Grip stainless hose clips, Whale non-return valves and strainers, Jabsco Y-valves, and hose by the metre for every job - clear PVC, wire-reinforced, food-grade drinking water, odour-proof sanitation and ISO 7840 fuel hose.

Marine plumbing rewards doing it properly: the right hose for the system, quality clips doubled below the waterline, and fittings matched to their job - composite or bronze where salt water flows, never ordinary brass. If you are re-plumbing a heads, replacing a seacock or chasing a mystery drip, bring your measurements (or the old part) and we will match threads, hose bores and materials from stock.

Frequently asked questions

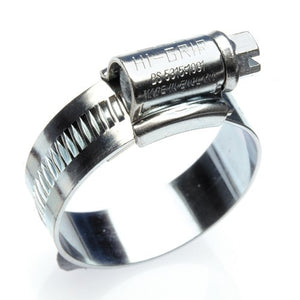

What size hose clip do I need?

Measure the outside diameter of the hose when fitted over its tail, then choose a clip whose range brackets that figure comfortably - each JCS Hi-Grip size covers a span, so the measurement can sit mid-range. Below the waterline, fit two clips per connection with the screws staggered.

Are composite skin fittings as good as bronze?

Glass-reinforced composite fittings like TruDesign are approved for below-waterline use and remove corrosion and electrolysis from the equation entirely - many yards now fit them as standard. Bronze remains an excellent traditional choice; plain uncoated brass is the one to avoid below the water.

Can I use household plumbing parts on a boat?

It is a false economy - domestic fittings are not rated for sea water, vibration or the standards insurers expect, and household hose tastes and kinks. Marine fittings and the correct hose for each system (water, waste, fuel) cost little more and stay trouble-free for years.

Marine Plumbing Explained

Quick overview about the plumbing fittings we supply.

Skin Fittings

Skin fittings are the components of a boat that allow the passage of water in and out from the hull. They provide a secure connection between a hose or pipe and the vessel, allowing for drainage of rainwater or seawater, as well as intake of cooling water for an engine. Skin fittings also permit installation of vents, such as bilge pumps, to remove unwanted water from the hull. They come in various shapes, sizes and materials, such as bronze, dzr or composite to suit different vessels and applications.

Non Return Valves

Non return valves on a boat are used to control the flow of water in and out of the vessel, such as from a bilge pump. They prevent backflow by maintaining pressure in one direction and preventing it from reversing course. The valve is designed to open when a certain pressure is applied, allowing water to travel through, but will close if the pressure drops or reverses. This helps protect against flooding and other problems caused by backflow of water. Non return valves are an essential part of any vessel’s water system, providing additional security and reliability in the case of an emergency.

Water Strainers

A water strainer on a boat's water system is a device that filters out dirt and other particles from the water before it passes through the system. It helps ensure that the pump, plumbing and other components are protected from debris, preventing clogging or corrosion. In addition to removing particles, it also helps to keep algae and other organisms out of the system, helping to maintain clean, safe and healthy water.

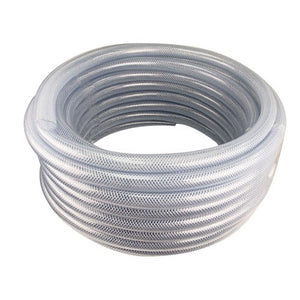

Hoses & Clips

Marine grade hoses are specially designed for use in the marine environment, which includes both salt water and fresh water. They consist of a tube, typically made from reinforced rubber or PVC, that carries fluids or gasses from one location to another. Hose clips are metal clips used to secure the ends of the hose at both its entry and exit points. These clips come in a variety of designs and sizes, depending on the type of hose being used and its application. Marine grade hoses and clips must also be highly resistant to corrosion, since they will be exposed to saltwater, which can cause rusting over time. Furthermore, they must also stand up to the harsh conditions created by frequent exposure to sun, wind, and rain.

Choose Fox's Chandlery for all your marine plumbing needs

At Fox's Chandlery we're committed to providing our customers with only the highest quality marine plumbing and fittings for thAt Fox's Chandlery, we offer the best deals on marine plumbing and fittings to ensure our customers have a reliable and quality-assured product for their vessels. Our decades of knowledge and experience allows us to develop lasting relationships with our customers, so that we can provide tailored solutions that meet their individual needs. We carry a range of brands, styles, and sizes to suit any vessel, so you're sure to find what you're looking for at an unbeatable price. Rest assured that when you shop with Fox's Chandlery – you're getting the best marine plumbing and fittings supplies on the market!eir vessels at unbeatable prices. With decades of experience serving boaters across the UK we strive to meet each customer’s individual needs so they have peace of mind when out at sea. Shop with us today and get the best deals on marine plumbing & fittings supplies online and in store!
