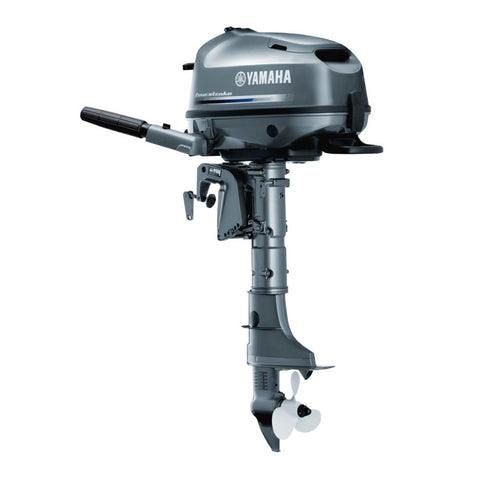

Yamaha 5hp Outboard Motor
Product Code: YAMF5AMHS
Estimated Delivery: 1 - 2 Working Days UK Mainland
All Price Prices Include VAT.
The Yamaha 5hp Outboard Motor delivers reliable performance for small boats, dinghies, and tenders. This compact engine combines fuel efficiency with dependable starting, making it ideal for recreational boating and fishing trips. Featuring Yamaha's proven engineering, it offers smooth operation and minimal maintenance requirements. Perfect for navigating shallow waters and tight spaces, this lightweight outboard provides the power you need without the bulk. Built to last with quality construction, it's a trusted choice for boaters seeking a practical, no-fuss propulsion solution.

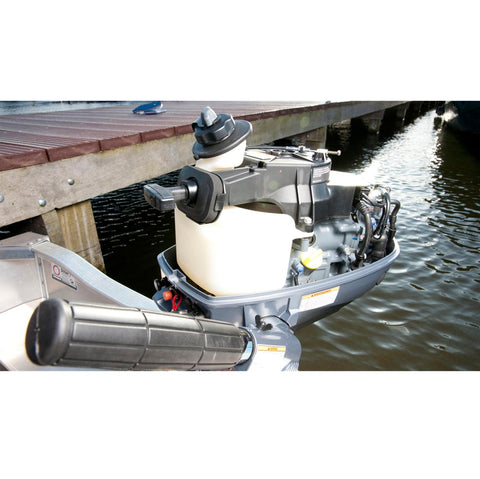

Its built-in 1.1 L fuel tank keeps the deck clear for what really matters and when adventure calls for a little more distance? Just plug in a remote tank and keep the story going. Add the three-position storage system for no leaks, zero drama, and it’s officially the neat freak of the marina.
Clean lines, crisp starts, and fuel economy that makes you feel like you’ve hacked physics; the 5hp isn’t just about getting places. It’s about doing it with a grin, a glide, and zero fuss.
|
Engine type |
OHV, 1-cylinder |
|
Displacement |
139 cm³ |
|
Bore x stroke |
62.0 × 46.0 mm |
|
Compression ratio |
8.9 : 1 |
|
Fuel induction system |
1 carburetor |
|
Lubrication system |
Wet sump |
|
Engine oil capacity |
0.6 L |
|
Ignition / advance system |
CDI |
|
Alternator |
6 A with optional regulator |
|
Overall length |
750 mm |
|
Overall width |
403 mm |
|
Overall height |
S: 1039 mm, L: 1166 mm |
|
Engine transom height |
S: 435 mm, L: 562 mm |
|

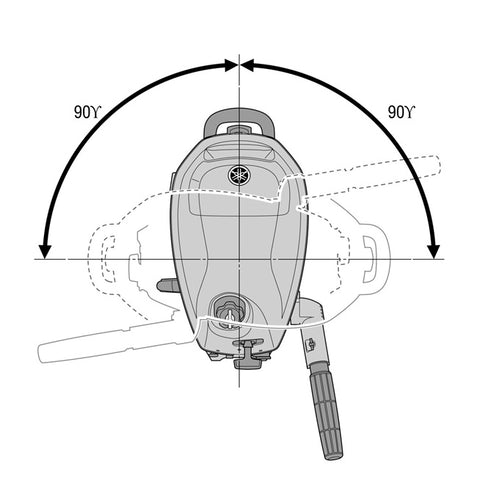

Steering angle |
90 degrees each direction |
|
Dry weight |
S: 27 kg, L: 28 kg |
|
Maximum propeller shaft output |
3.7 kW |
|
Full throttle operating range |
4500 – 5500 r/min |
|
Idling speed |
1450 – 1550 r/min |
|
Shallow water drive |
3 positions |
|
Gear shift |
F-N-R |
|
Gear ratio |
2.08 (27/13) |
|
Gear oil capacity |
0.100 L |
